Categoria de productes: fil BSPT per a adaptador de canonades
Gràfic de mida de fil BSPT: de G1 / 8 ”a G3”, usat principalment al Regne Unit, Europa occidental i Japó.
Estàndard de fil masculí i femení BSPT (R) segons BS 21, ISO 7/1. JIS B 0203, similar a la 3852-2 forma Z, JIS B8363.
Per canalitzar tipus de fil: adaptador Npt, adaptador SAE ORB, BSPP, mètrica, accessoris de port UNF,

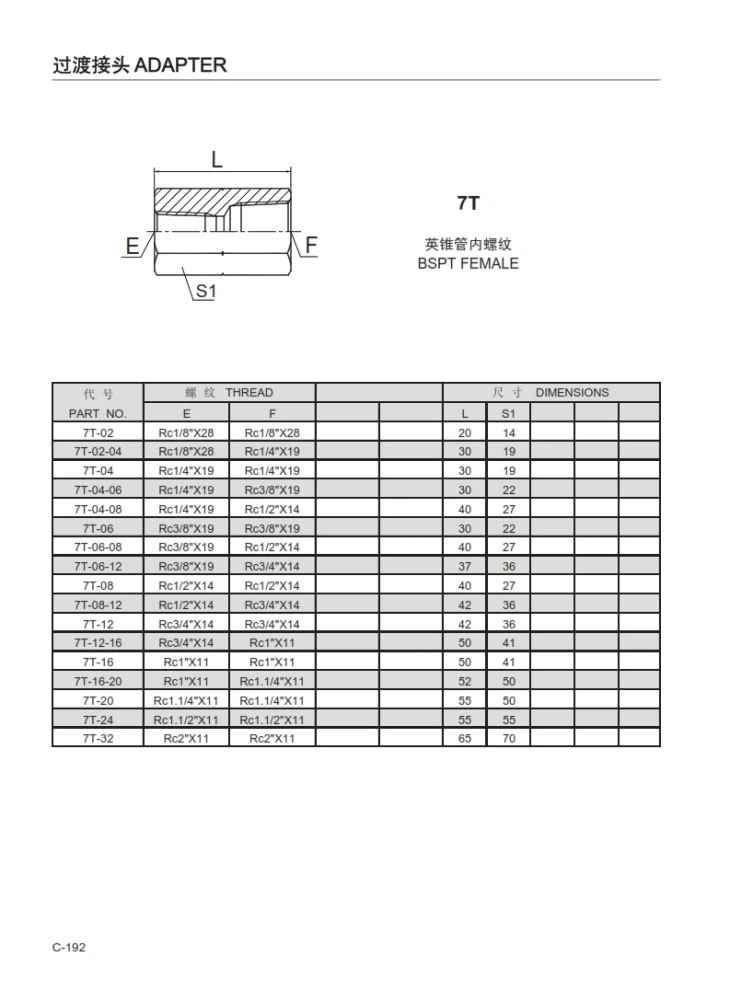

7T BSPT FEMALE Gràfic de dimensions a continuació:
PA RT NO. | T HR EA D | DI M E N S IONS | |||||
I | F | L | S 1 | ||||
7 T -0 2 | Rc 1/8 " X 2 8 | Rc 1/8 " X 2 8 | 2 0 | 1 4 | |||
7 T -02-0 4 | Rc 1/8 " X 2 8 | Rc 1/4 " X 1 9 | 3 0 | 1 9 | |||
7 T -0 4 | Rc 1/4 " X 1 9 | Rc 1/4 " X 1 9 | 3 0 | 1 9 | |||
7 T -04-0 6 | Rc 1/4 " X 1 9 | Rc 3/8 " X 1 9 | 3 0 | 2 2 | |||
7 T -04-0 8 | Rc 1/4 " X 1 9 | Rc 1/2 " X 1 4 | 4 0 | 2 7 | |||
7 T -0 6 | Rc 3/8 " X 1 9 | Rc 3/8 " X 1 9 | 3 0 | 2 2 | |||
7 T -06-0 8 | Rc 3/8 " X 1 9 | Rc 1/2 " X 1 4 | 4 0 | 2 7 | |||
7 T -06-1 2 | Rc 3/8 " X 1 9 | Rc 3/4 " X 1 4 | 3 7 | 3 6 | |||
7 T -0 8 | Rc 1/2 " X 1 4 | Rc 1/2 " X 1 4 | 4 0 | 2 7 | |||
7 T -08-1 2 | Rc 1/2 " X 1 4 | Rc 3/4 " X 1 4 | 4 2 | 3 6 | |||
7 T -1 2 | Rc 3/4 " X 1 4 | Rc 3/4 " X 1 4 | 4 2 | 3 6 | |||
7 T -12-1 6 | Rc 3/4 " X 1 4 | Rc 1 " X 1 1 | 5 0 | 4 1 | |||
7 T -1 6 | Rc 1 " X 1 1 | Rc 1 " X 1 1 | 5 0 | 4 1 | |||
7 T -16-2 0 | Rc 1 " X 1 1 | Rc 1 . 1/4 " X 1 1 | 5 2 | 5 0 | |||
7 T -2 0 | Rc 1 . 1/4 " X 1 1 | Rc 1 . 1/4 " X 1 1 | 5 5 | 5 0 | |||
7 T -2 4 | Rc 1 . 1/2 " X 1 1 | Rc 1 . 1/2 " X 1 1 | 5 5 | 5 5 | |||
7 T -3 2 | Rc 2 " X 1 1 | Rc 2 " X 1 1 | 6 5 | 7 0 | |||
